V3 Heng Long IR Receiver Upgrade with Mounting Kit

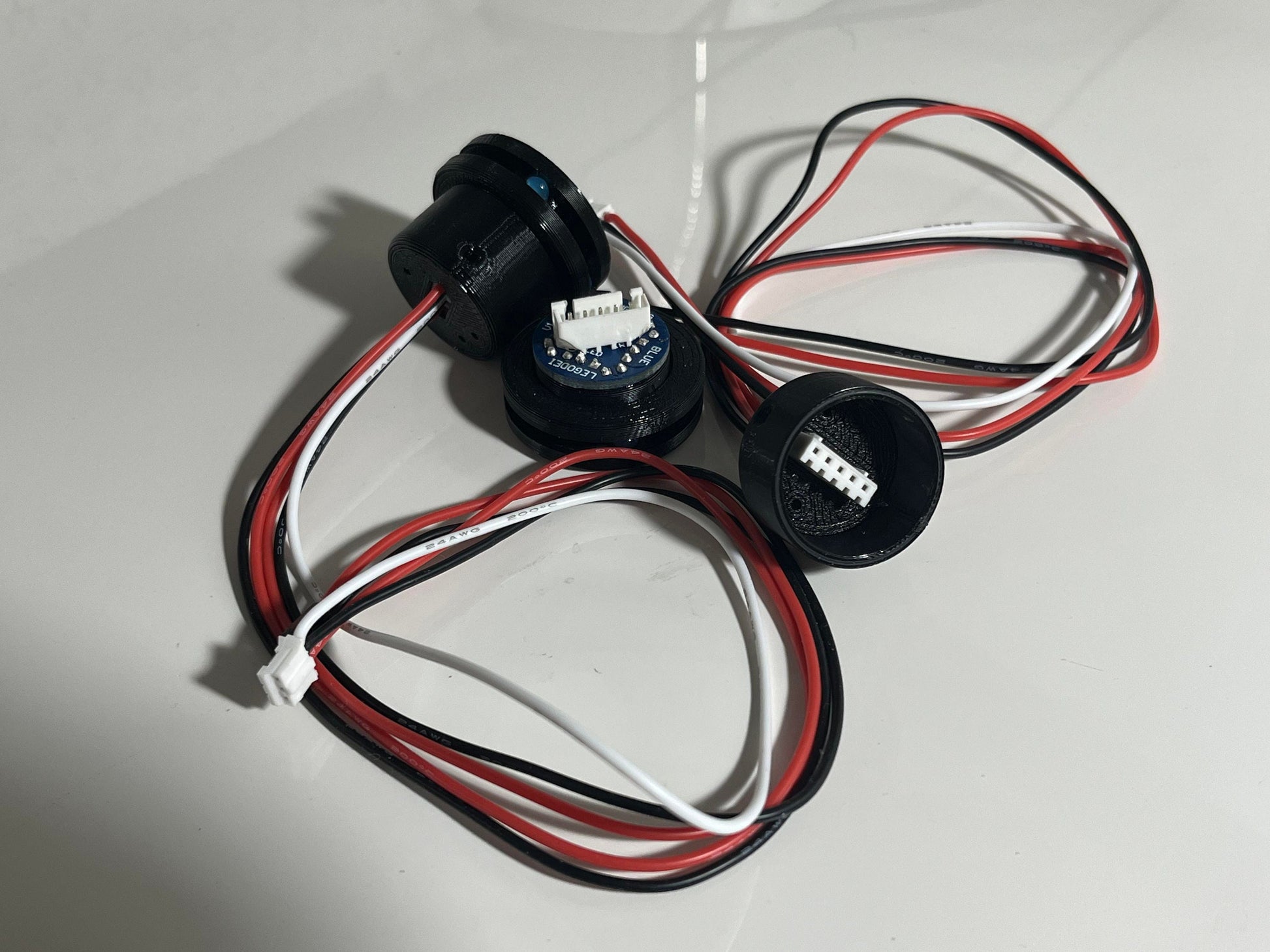

A high performance IR battle receiver apple for Heng Long tanks. (HL 5.2 - 7) This is a high quality, made in the USA product. Includes wire harness cabling and mounting kit. Over 200 feet reception range under ideal conditions. (with upgraded IR emitter) Direct upgrade for HengLong dome receivers - triple your battling range!

Installation VIDEO: https://youtu.be/O6Rg4yilqCU

V2 -> V3 Changes: Significantly Shorter Profile (height including mount): V3 is 0.5in / 13mm, V2 is 0.87in / 22mm. Same Footprint/Diameter Lower reflection sensitivity, slightly reduced detection range. (Depends on emitter power, ~20% shorter range, example: 150ft -> 120ft, or 100ft ->80ft)

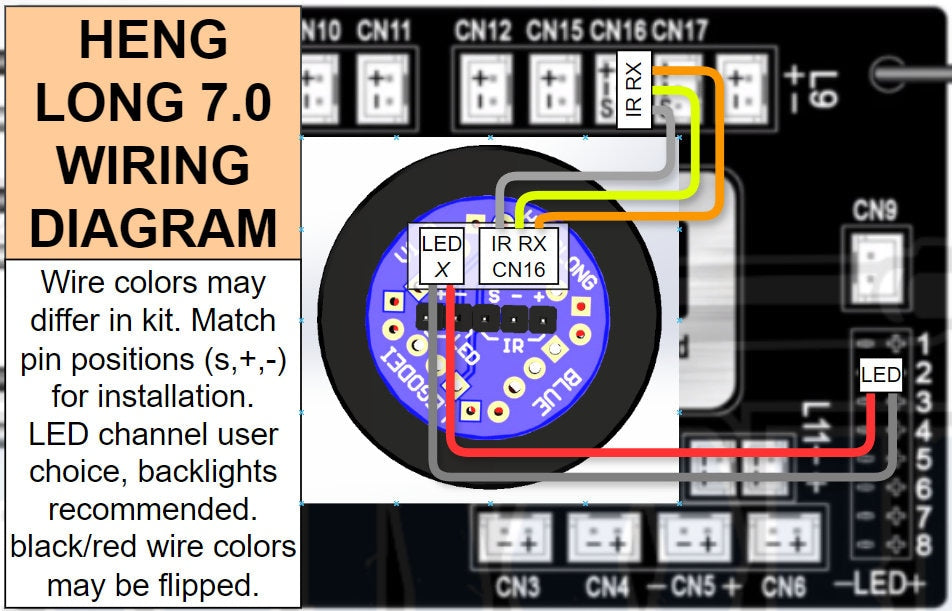

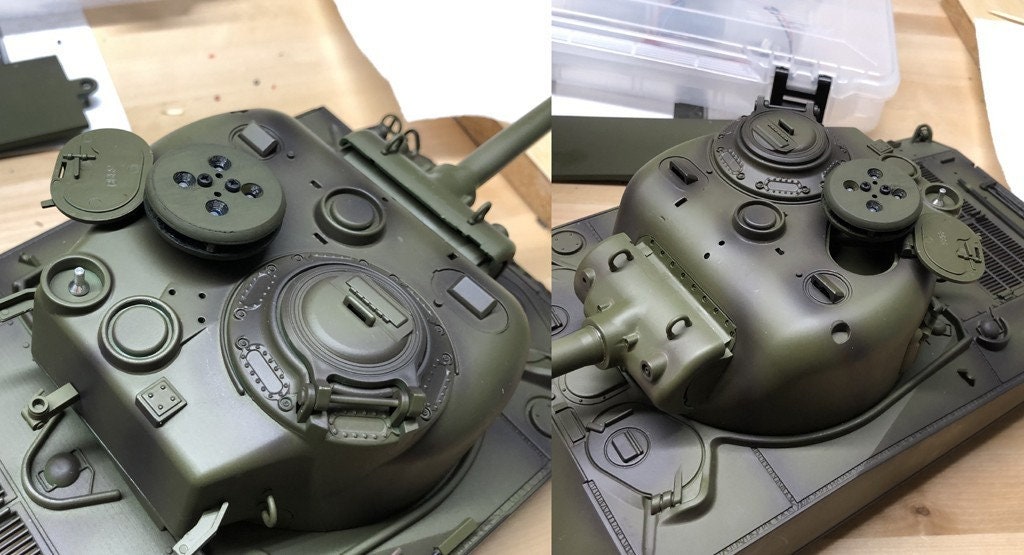

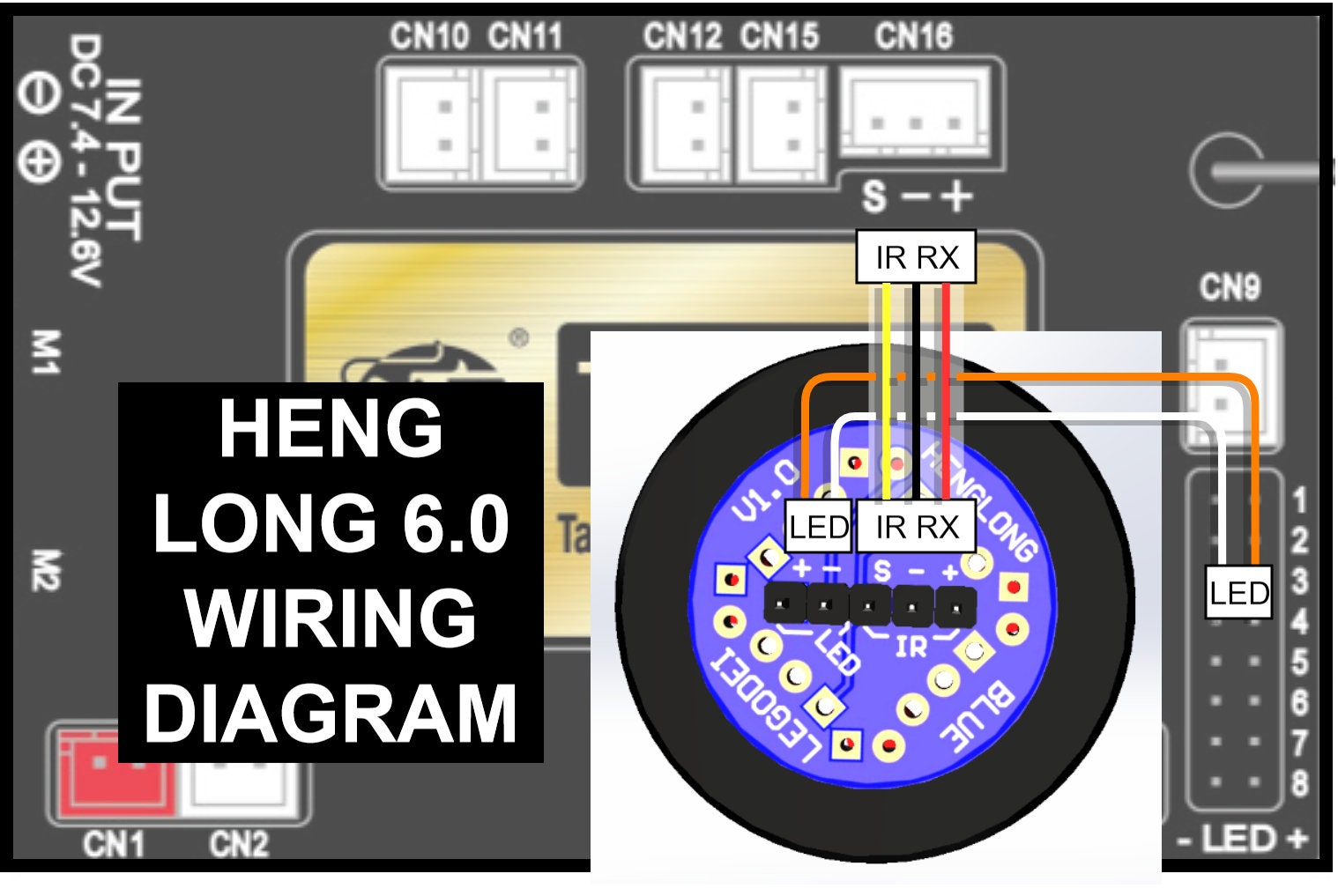

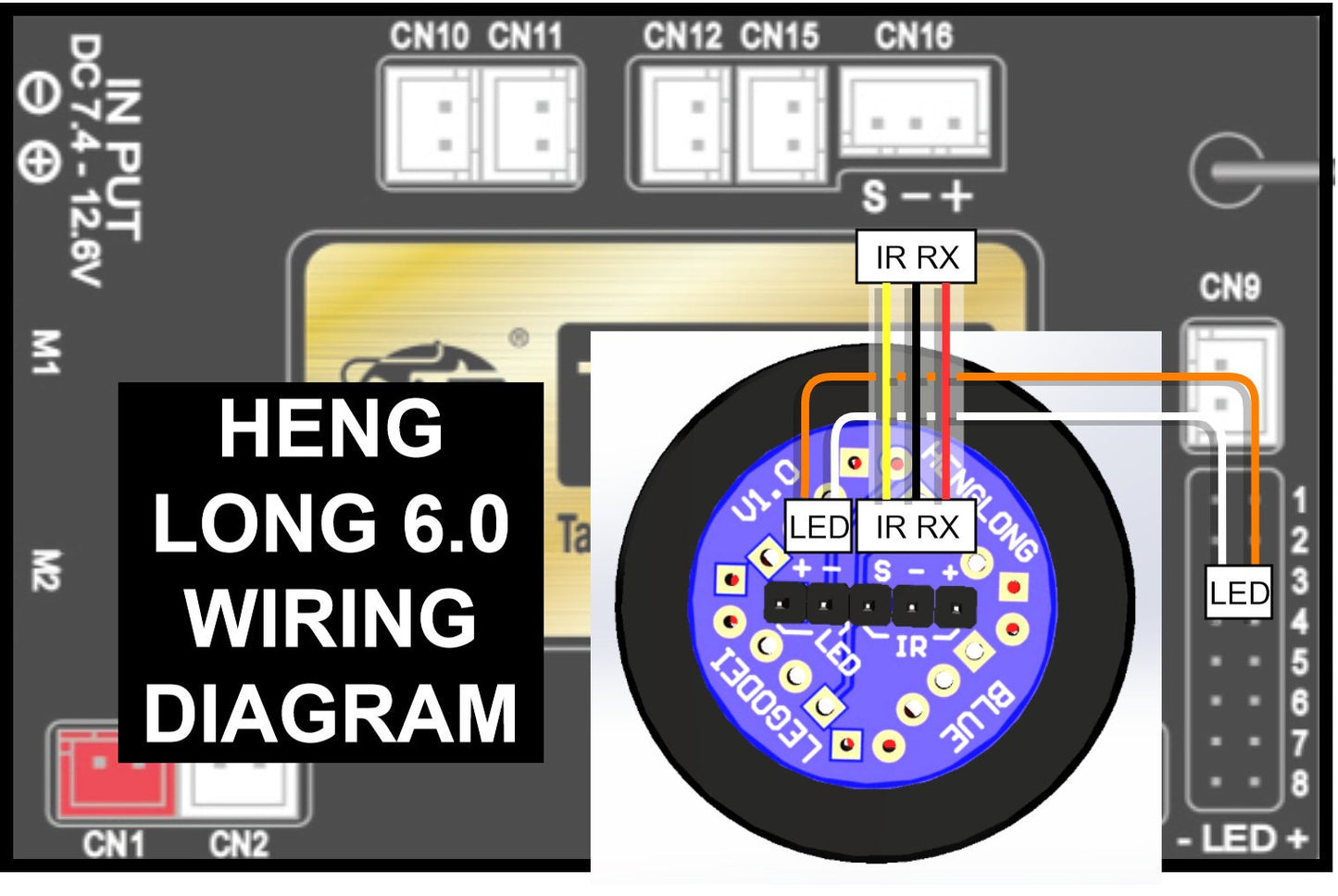

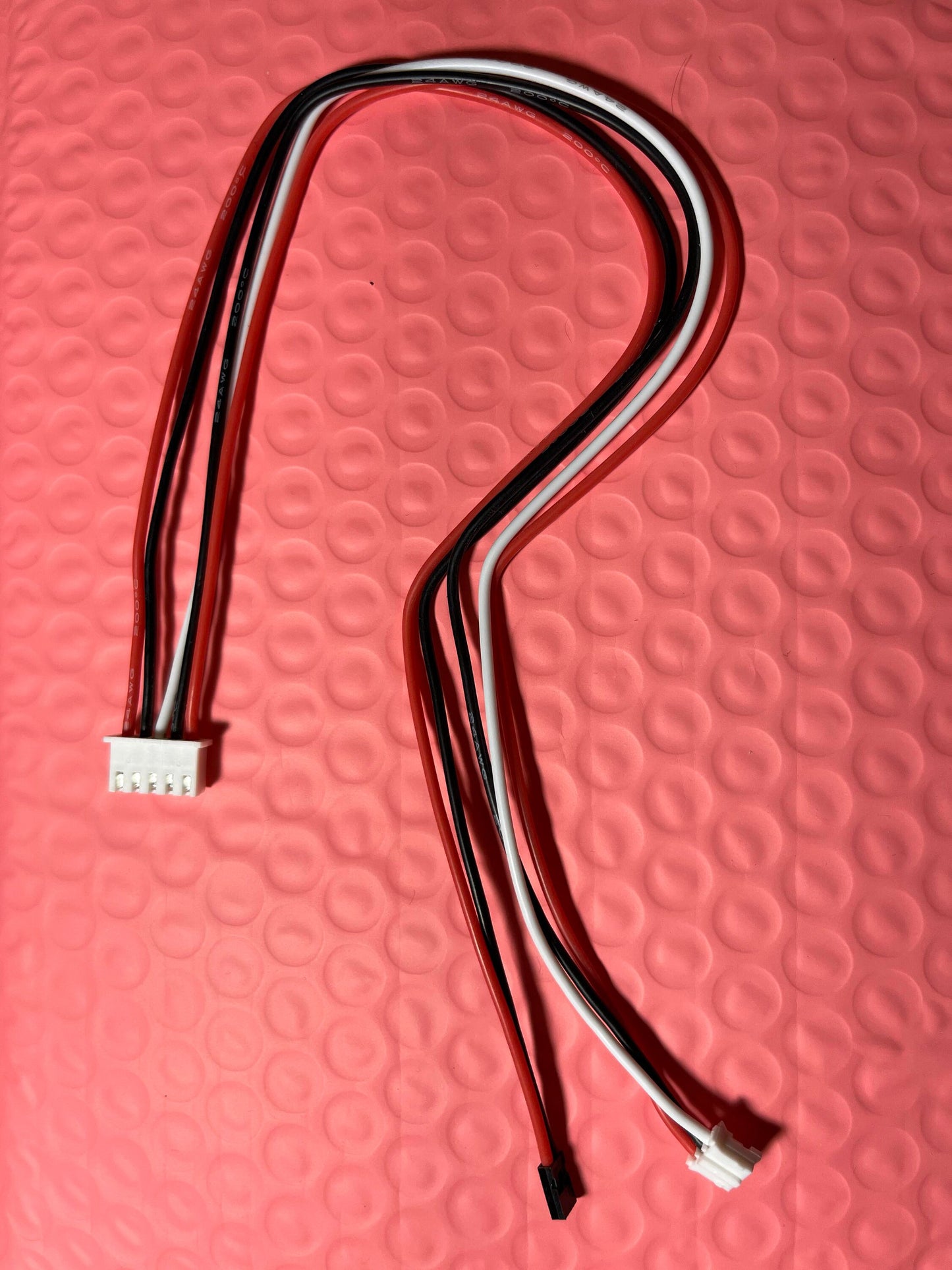

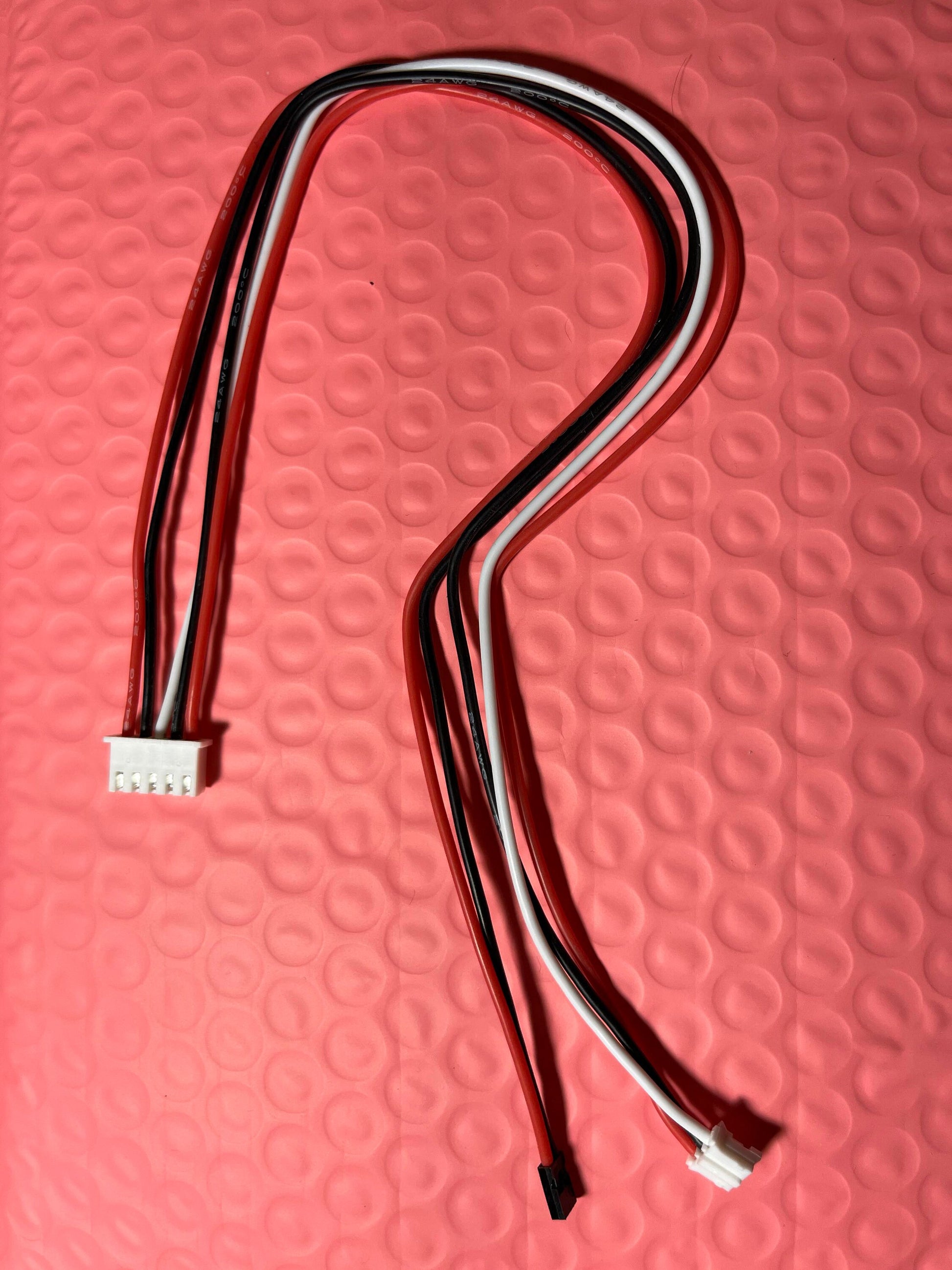

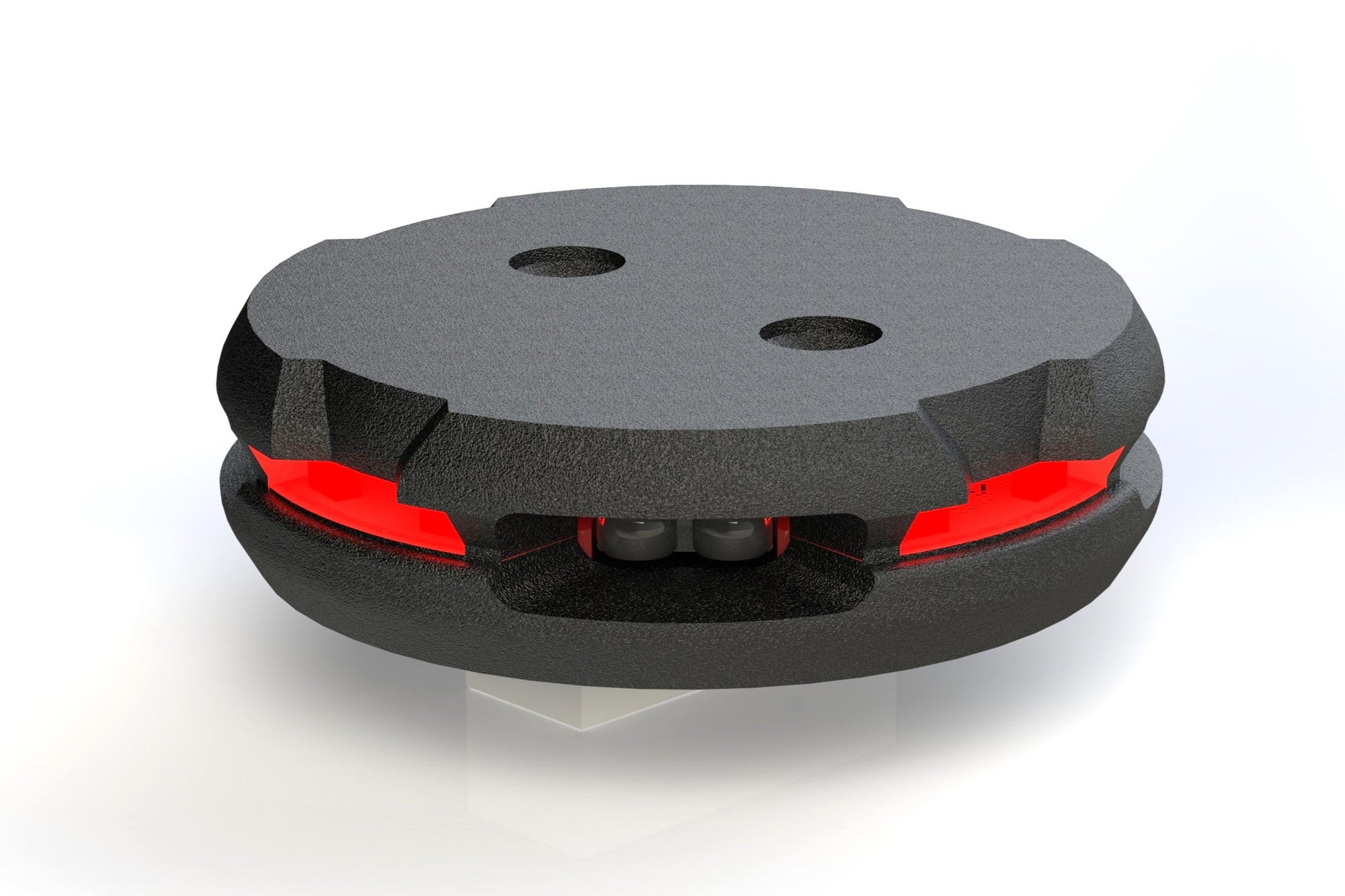

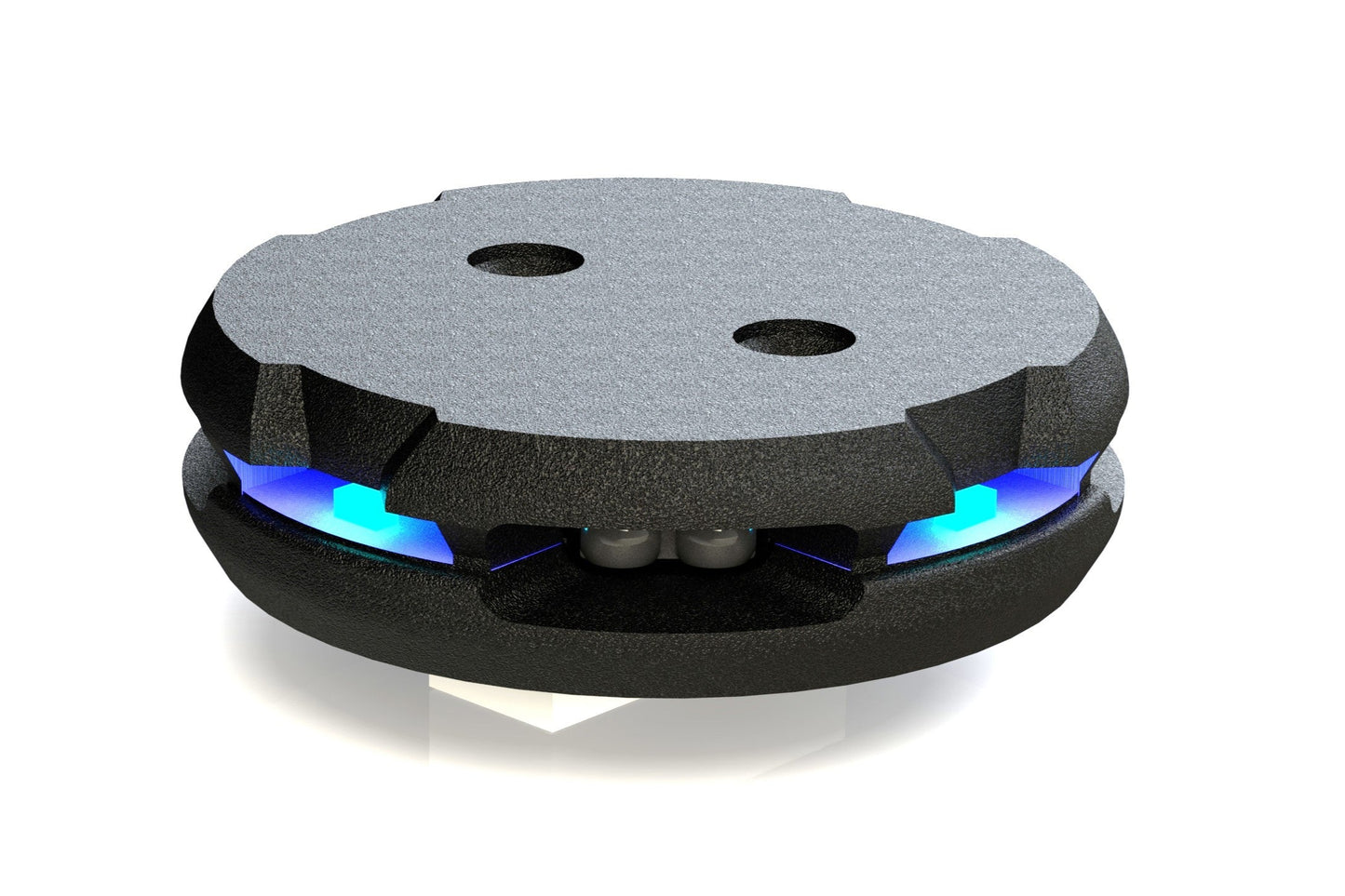

Utilizes ultra high-intensity LED's for hit confirmation- even visible at high noon under direct sunlight. Available in both red and teal. Most compact, lowest profile IR receiver on the market; perfect for mounting over hatches, preserving the aesthetics of the tank. Includes 5 pin female to female connector cable (~20 cm length)- plugs right into a HL TK6 / TK7 board.

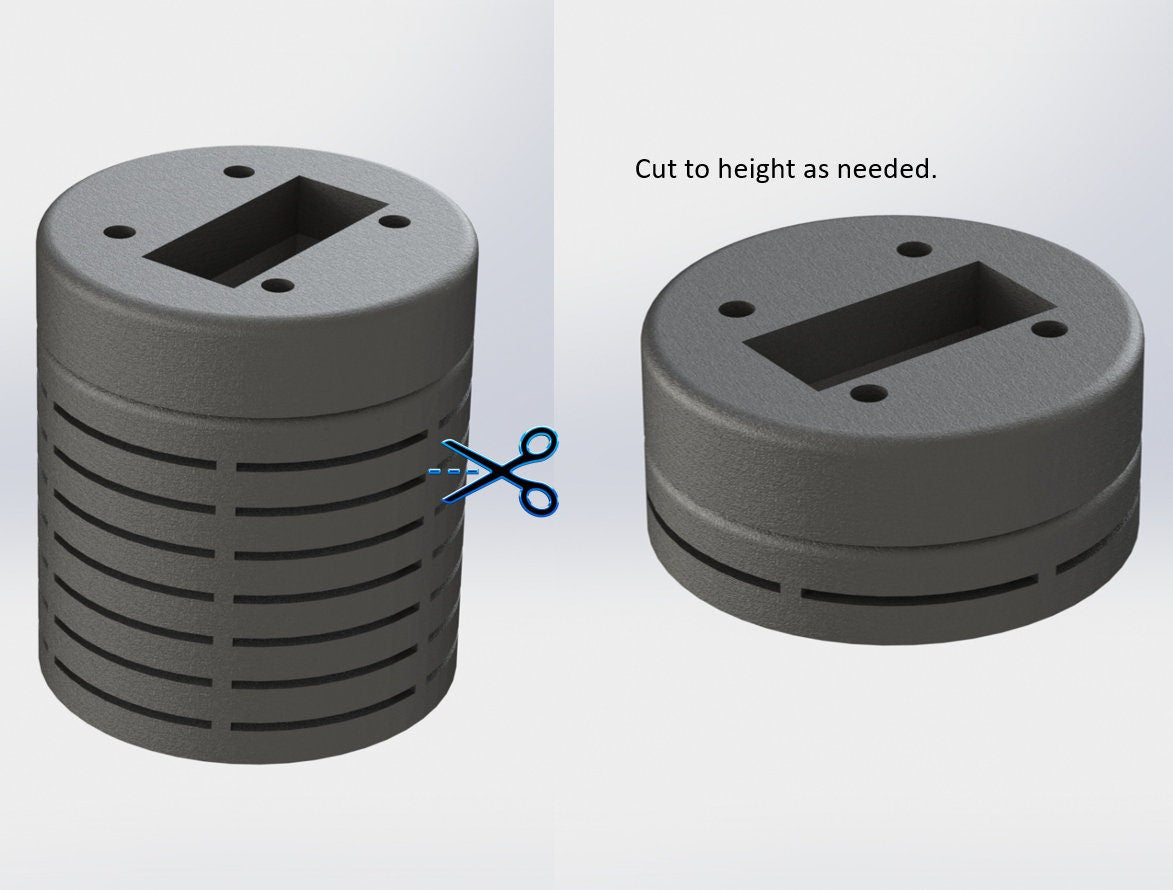

The images shown are digital renders, and since the physical shades are 3D printed, the end user will need to sand the surface to achieve the same level of smoothness. The physical appearance of the sunshade may also differ from pictures as continual improvements to reception geometry are made. For more information see: https://www.hobbysquawk.com/forum/rc-cars-tanks-trucks-and-more/rc-tanks/244141-new-compatible-heng-long-6-0-ir-receiver-test-results
